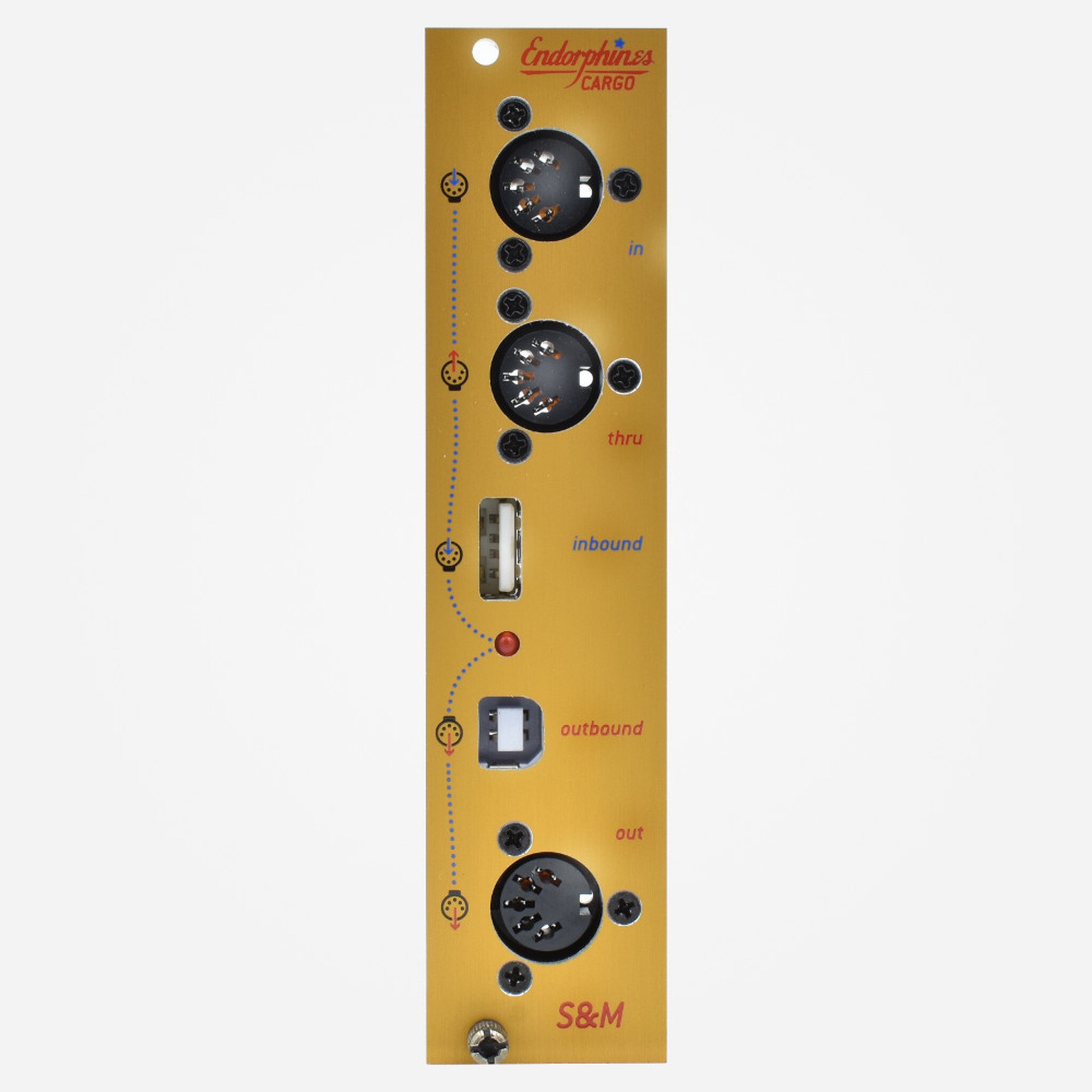

- Shuttle Mate is an expander for the Endorphin.es Shuttle Control USB MIDI to CV module, and allows one to add DIN Midi IN, OUT, and THRU, while also allowing a 3rd USB input and 2nd USB output, so you can MIDI merge USB MIDI and DIN MIDI, and send it out via either!
- 6 HP width, up to 1 1/3“ in depth
- Merge MIDI and USB-MIDI streams into one MIDI/USB MIDI flow perfect mate for Shuttle Control to be able to connect a few MIDI devices into Shuttles ‚to host‘ input (e.g., merge drum machine‘s MIDI clock while playing with your MIDI controller)
- No bus power required – device runs fully on power delivered from USB socket, however it also may be powered from the bus board
- Can be used standalone to merge MIDI to any USB Eurorack device.
25 mA +12V
15 mA -12V
0 mA 5V
13 mm deep – incredibly skinny for the tiniest skiffs
